WATER TREATMENT SYSTEMS

The Right Treatment Starts With the Water.

Water-treatment equipment is designed to solve specific problems. A water softener, iron filter, reverse osmosis system and UV system all do very different things — and no single technology is the right answer for every water source.

Air & Water provides residential, commercial and community water-treatment systems selected around the water chemistry, water source, flow requirements and how the water will be used.

Request Service
Explore Water Testing

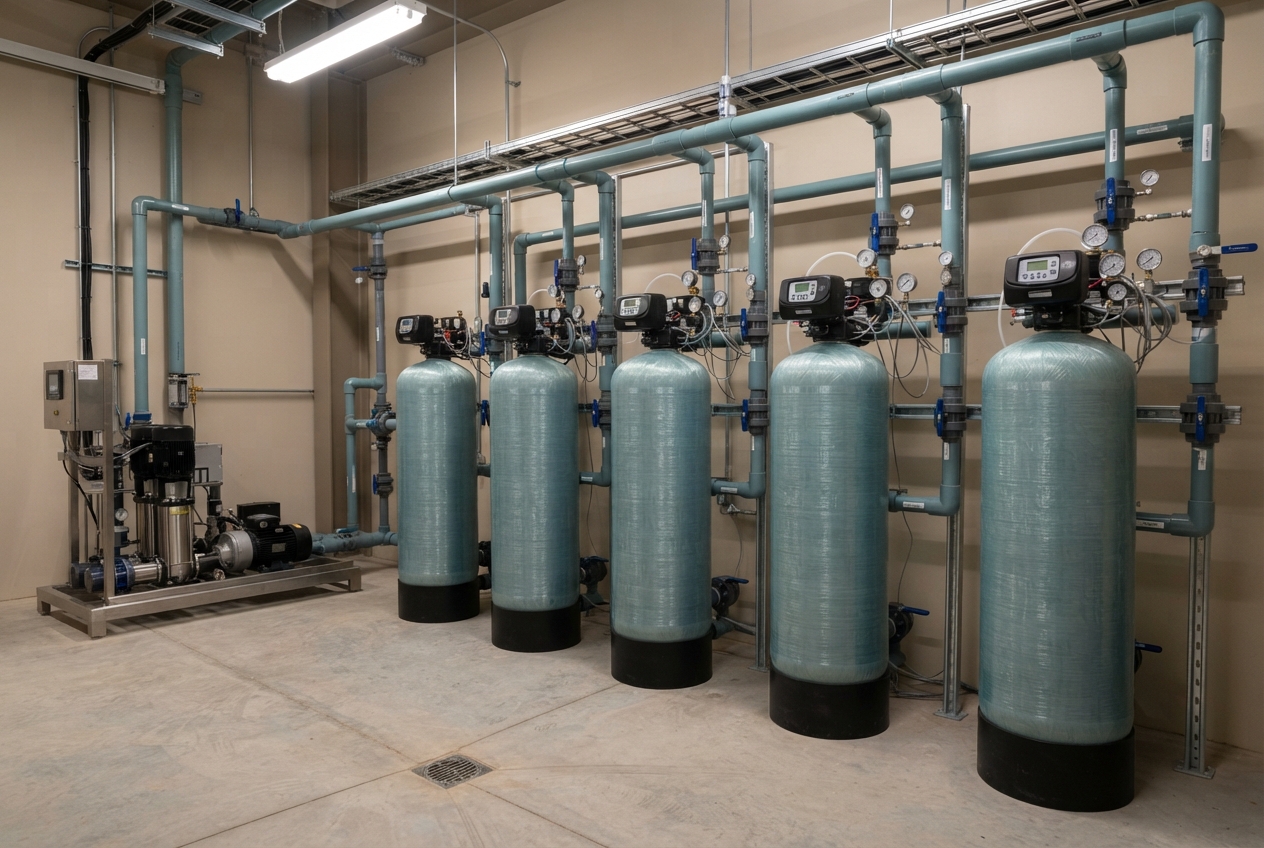

Five teal water-treatment tanks with control heads, gauges, pipes, valves, and a pump assembly in an industrial room.
UNDERSTAND THE OPTIONS

Different Problems Require Different Treatment.

The equipment comes after the problem is understood. Some water systems require only one treatment process. Others may require several treatment stages working together.

water_drop

Water Softeners

Reduce hardness minerals that cause scale and interfere with soaps and detergents.

Water Softeners
format_color_fill

Iron & Manganese Treatment

Treatment for dissolved or oxidized iron and manganese that can cause staining, discolouration and other water-quality concerns.

Iron & Manganese Treatment
filter_alt

Filtration

Treatment for sediment, turbidity, suspended material, taste, odour and other filtration requirements.

Filtration
water

Reverse Osmosis

Membrane treatment for reducing a broad range of dissolved substances, commonly used for drinking water and specialized applications.

Reverse Osmosis
light_mode

UV & Disinfection

Treatment barriers used to address microbiological concerns in appropriately pretreated water.

UV & Disinfection
science

Specialty Treatment

Treatment for arsenic and other water-quality concerns requiring a more specific approach.

Specialty Treatment
HARD WATER TREATMENT

Water Softening

Hard water contains dissolved calcium and magnesium. As water is used and heated, these minerals can contribute to scale on fixtures, appliances, water heaters and throughout plumbing systems.

Ion-exchange water softeners reduce hardness by exchanging calcium and magnesium ions in the water for sodium or potassium ions.

A properly selected softener considers:

  • Water hardness
  • Household or facility water usage
  • Peak flow requirements
  • Iron or manganese that may also be present
  • Available plumbing and water pressure
  • Regeneration requirements
settings

Residential to Progressive-Flow Systems

Air & Water provides water softening systems ranging from residential single-tank units to duplex, triplex and progressive-flow configurations for larger applications.

Learn About Residential Water Treatment
Water-treatment equipment with black and blue tanks, PVC pipes, valves, and a three-filter assembly on a plywood wall.
STAINING & DISCOLOURATION

Iron & Manganese Treatment

Iron and manganese can appear in different forms in water, and those differences matter when selecting treatment.

Depending on the water chemistry and concentration, treatment may involve water softening, oxidation, specialized filtration or a combination of processes.

A treatment system should be selected based on what is actually present in the water — not simply whether the stain is orange or black.

Treatment approaches may include:

  • Water softening for suitable applications
  • Oxidation and filtration
  • Air-injection systems
  • Specialized filtration media
  • Multi-stage treatment where required
Rust-stained vintage faucet mounted on an old white porcelain sink beside teal paneling.
CHEMICAL-FREE IRON FILTRATION

Iron King

Iron King is designed to reduce iron in suitable well-water applications using oxidation and specialized filtration media.

Unlike traditional iron-removal systems that regenerate using chemical oxidants such as potassium permanganate, the Iron King does not require a chemical regenerant.

Why Iron King?

  • No salt required for the iron-removal process
  • No continuously fed chemical oxidant
  • Automatic backwashing
  • Designed for well-water iron treatment
  • Locally supplied and serviced by Air & Water

Iron King is not the right treatment for every iron problem. Water chemistry, iron concentration, manganese, pH and other water-quality conditions should be considered before selecting an iron-treatment system.

Ask Us About Iron King
SEDIMENT, TURBIDITY, COLOUR, TASTE & ODOUR

Water Filtration

Water filtration can range from simple cartridge filters to larger media filters and membrane filtration systems. Different approaches may be used for sediment, turbidity, colour, taste and odour, natural organic matter and other water-quality concerns.

The appropriate filtration method depends on what's in the water and what the treatment is intended to accomplish.

filter_alt

Cartridge Filtration

Replaceable filters for sediment and other specific filtration requirements.

autorenew

Backwashing Filtration

Larger media-based systems that automatically clean themselves by reversing water through the filter bed.

water_drop

Carbon Filtration

Used in suitable applications to address taste, odour, chlorine and organic colour, including tannins in some applications.

grain

Fine & Membrane Filtration

Higher levels of filtration for applications requiring removal of very small suspended material.

filter_vintage

Ultrafiltration

Membrane treatment capable of providing a physical barrier to very fine particles and microorganisms in appropriately designed systems.

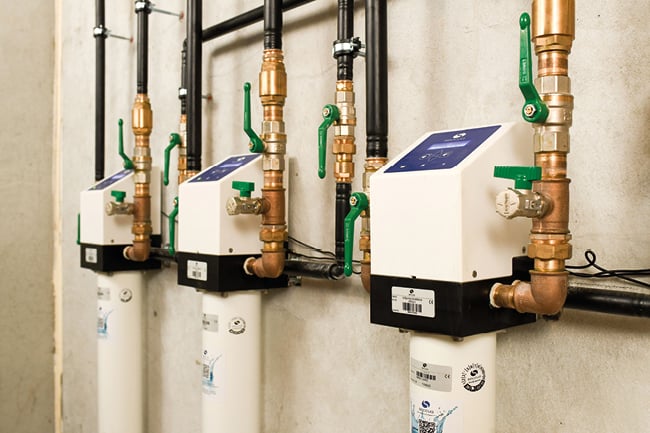

Three wall-mounted plumbing units with copper pipes, black tubing, green valve handles, and white cylindrical components.
DISSOLVED CONTAMINANTS

Reverse Osmosis

Reverse osmosis uses a membrane to reduce a wide range of dissolved substances in water. It is commonly used for drinking and cooking water where point-of-use treatment is appropriate.

Depending on the water chemistry and treatment objective, reverse osmosis may be considered for concerns such as elevated dissolved solids, nitrate, arsenic or sulphate.

  • check

    Total dissolved solids

  • check

    Arsenic

  • check

    Nitrate

  • check

    Sulphate

  • check

    Sodium

  • check

    Hardness minerals

  • check

    Other dissolved contaminants and minerals, depending on the membrane and water chemistry

Open cabinet showing a kitchen sink, reverse-osmosis filters, storage tank, tubing, plumbing, and cleaning supplies.
MICROBIOLOGICAL TREATMENT

UV & Disinfection

Ultraviolet disinfection uses UV light to inactivate susceptible microorganisms as water passes through the reactor.

Effective UV treatment depends on appropriate equipment sizing, water quality and pretreatment. UV addresses microbiological concerns; it does not remove dissolved chemical contaminants, hardness or other substances from the water.

shield

Other Disinfection Approaches

For some applications, chlorination or other disinfection processes may be more appropriate or may be used as part of a multi-barrier treatment system. Air & Water can help assess the water source, treatment objectives and existing equipment to determine what approach should be considered.

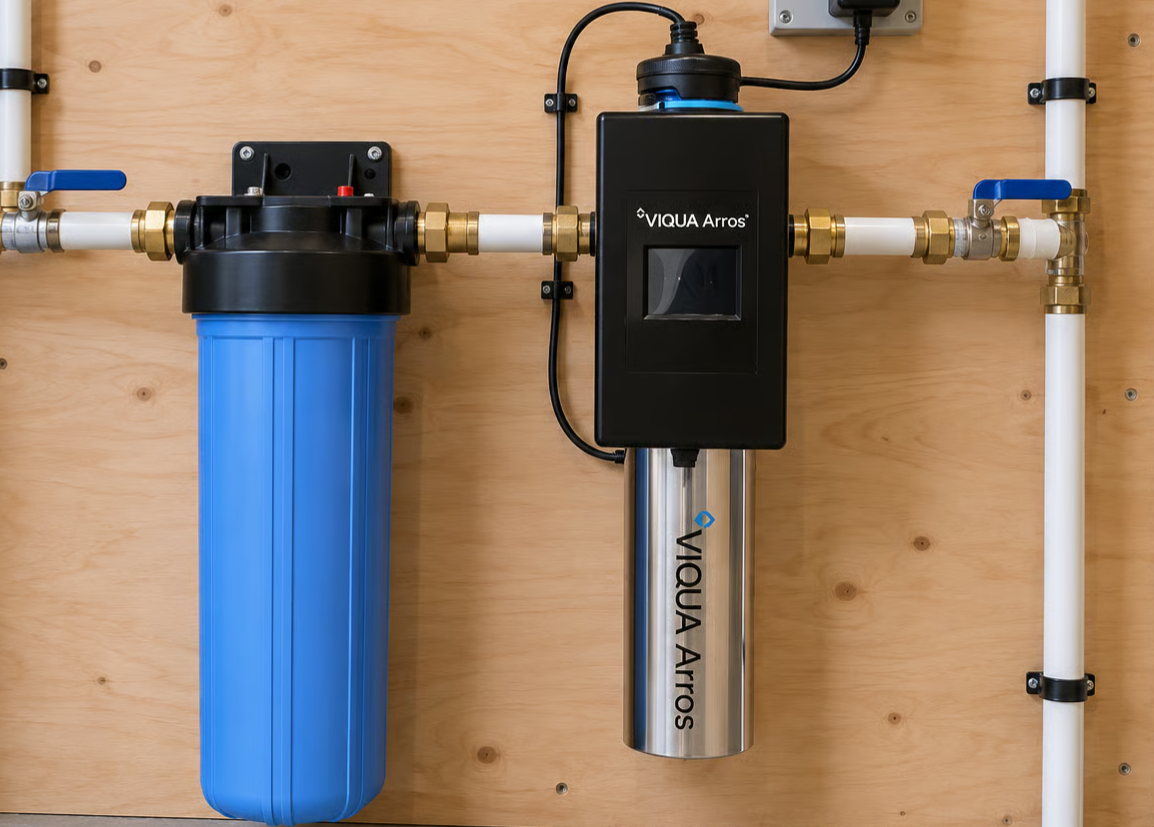

Wall-mounted VIQUA Arros water filtration and ultraviolet treatment system with blue filter housing and white piping.
WHEN STANDARD TREATMENT ISN'T ENOUGH

Some Water Requires a More Specific Approach.

Some water-quality concerns require more specialized treatment. Depending on the water chemistry and application, this may include treatment for arsenic and other contaminants, oxidation, chlorination, specialized media or other application-specific processes.

These systems are selected according to the conditions present and the treatment objective.

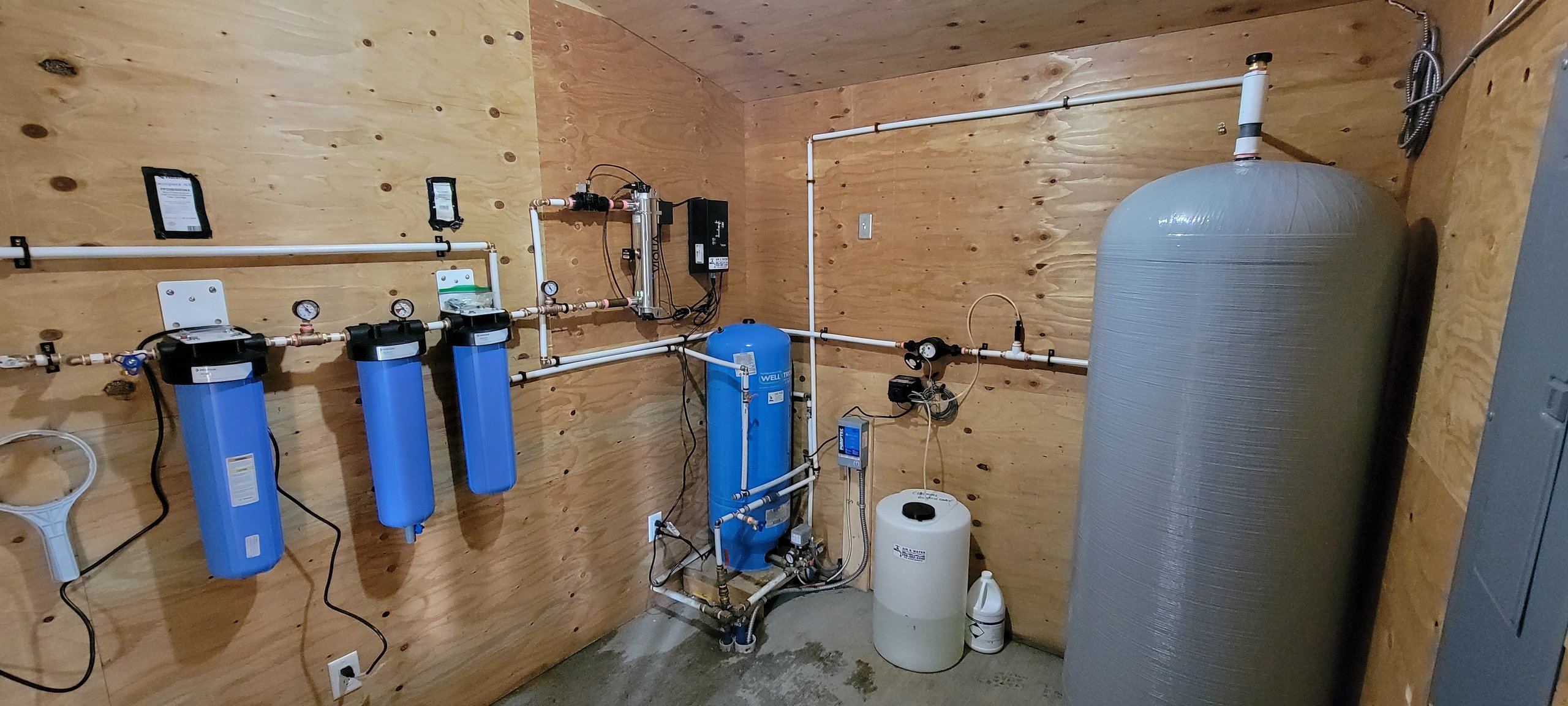

Residential well-water filtration equipment with blue tanks, white piping, gauges, wiring, and a large gray tank in a plywood utility room.
WHEN ONE PROCESS ISN'T ENOUGH

Sometimes the Treatment Is a Process — Not a Product.

Some water sources require more than one treatment process. Pretreatment may be needed to protect downstream equipment, and different treatment stages may address different water-quality concerns.

The order of treatment matters. A properly configured system considers how each stage affects the equipment that follows it.

  • arrow_forward

    Source Water

  • arrow_forward

    Pretreatment

  • arrow_forward

    Treatment

  • arrow_forward

    Polishing

  • arrow_forward

    Disinfection

  • arrow_forward

    Treated Water

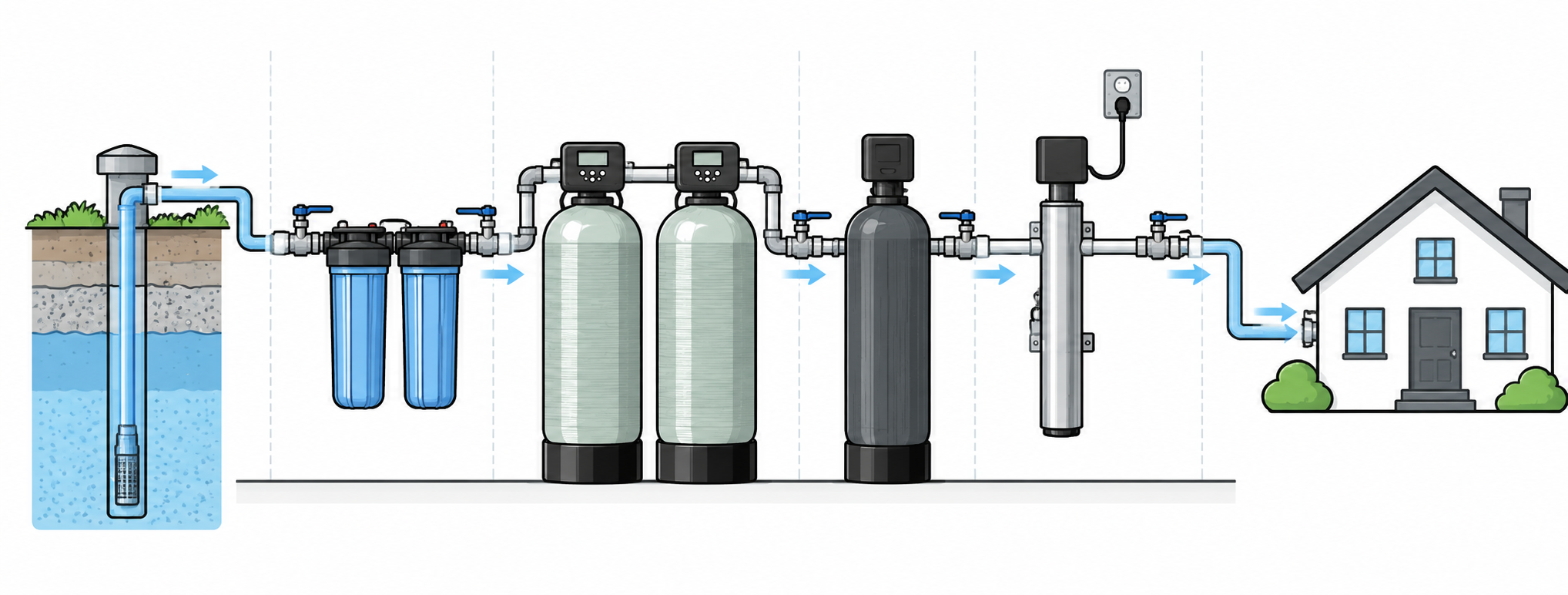

Whole-house water filtration system diagram showing groundwater flowing through filters, tanks, and a UV unit into a home.
SERVICE & REPAIR

Good Equipment Still Needs Service.

Water-treatment equipment changes as it ages — and so can the water being treated.

Air & Water services a wide range of residential and commercial water-treatment systems, including equipment we did not originally install.

Services include:

If an existing system isn't producing the water it used to, our first question isn't automatically how to replace it. We look at what has changed and whether the existing equipment can be returned to proper operation.

  • check

    Water softener service

  • check

    Iron and manganese filter service

  • check

    Reverse osmosis service

  • check

    UV maintenance

  • check

    Filter and media replacement

  • check

    Valve and control troubleshooting

  • check

    System sanitization

  • check

    Water-quality and treatment-performance checks

  • check

    Existing system assessments

Request Service
Exposed water-treatment equipment with blue PEX tubing, brass fittings, gears, wiring, and a large fiberglass tank.
UNDERSTAND THE WATER. THEN TREAT IT.

The Equipment Comes After the Water

We consider the water chemistry, water use, flow requirements and treatment objective before recommending equipment.

Sometimes the appropriate solution is one treatment step. Sometimes several are required. And sometimes treatment may not be necessary at all.

Not Sure What Treatment You Need?

Start with the water. Tell us what you're experiencing, how the water is being used and what you're trying to accomplish. We can help determine the appropriate next step.
